Description

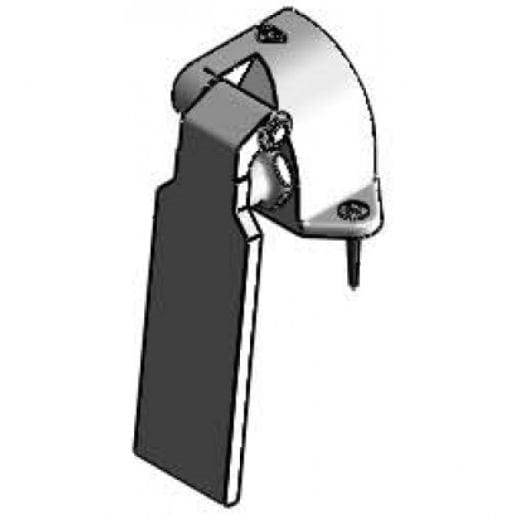

The B-0507-509PDL is a single ledge-mount self-closing knee pedal valve from T&S Brass with a 1/2" NPT female inlet and outlet.
There are 2 mounting screws included with this knee pedal valve.
This valve operates with pressure between 20 to 125 psi and temperatures between 40 to 140 degrees F.
This knee pedal valve is proudly made in the USA, low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.
T&S Brass B-0507-509PDL Features
- Ledge-mount self-closing single knee pedal valve
- 1/2" NPT female inlet and outlet
- NSF/ANSI 61 compliant
- Low-lead compliant
- Certified to ASME A112.18.1/CSA B125.1
- 2 mounting screws included
- Pressure Range: 20 to 125 psi
- Temperature Range: 40 to 140 degrees F
- Made in the USA
T&S Brass B-0507-509PDL Benefits
- Durable and attractive polished chrome brass construction
Overall Dimensions:
Height: 6 13/16"
Width: 3 5/8"
Depth: 3 11/16"
