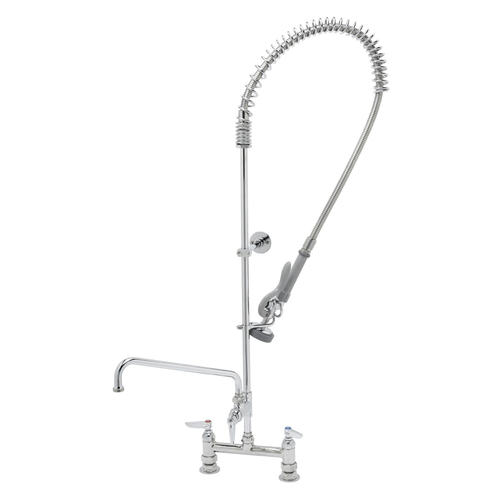

EasyInstall Pre-Rinse Unit, deck mount base, 8" adjustable center, spring action gooseneck, 1.15 GPM spray valve (B-0107), 12" add-on faucet, 24" riser, 44" flexible stainless steel hose, 2" ? deck flanges with 1/2" NPT female flanged inlets, lever handles, quarter-turn Eterna cartridges, low lead, 2019 DOE PRSV - Class II
Specification
| Ship Weight |
14.75 lb |
| Manufacturer |
T&S Brass |
| Model Number |
B-0123-ADF12-B |
| Manufacturer Part # |
B-0123-ADF12-B |
| Type |
Pre-Rinse Units |
| Overall Height |
46 Inches |
| Hose Length |
44 Inches |
| Add-On Faucet Length |
12 Inches |
| Faucet Centers |
8 Inches |
| Base Material |
Stainless Steel/Chrome Plated Brass |
| Color |
Silver |
| Mounting Style |
Deck-Mount |
| Nozzle Type |
Swivel |
| Pre Rinse Unit Type |
Overhead Spring |
| Low-Lead Compliant |
Yes |
| Spray Valve Model |
T&S Brass B-0107 |
| Spray Valve Flow Rate |
1.15 GPM |
| Handle Type |
Heat Resistant Gray Handle |
| Nozzle Model |
T&S Brass 062X |
| Cartridges |
1/4-Turn Eterna Compression Cartridges |
| NSF Certified |
Yes |
| ASME Certified |
Yes |
| Oversized Shipping |
No |
| Hazardous Material |
No |
| Temperature Range |
40 - 140 Degrees F |
| Pressure Range |
20 - 125 psi |
Description
This pre-rinse unit is low-lead compliant, and it is certified to ASME A112.18.1/CSA B125.1, and NSF/ANSI 61.
The B-0123-ADF12-B is the EasyInstall deck-mount overhead spring style pre-rinse unit from T&S Brass on 8" centers with a 44" flexible stainless steel hose with a heat resistant gray handle and hold down ring and the B-0107 model 1.15 GPM spray valve and a 062X model 12" swivel nozzle.
The pre-rinse unit has a 46" overall height.
There are 1/2" NPT female eccentric inlets with 2" flanges on this pre-rinse unit and it operates with temperatures between 40 - 140 degrees F and 20 - 125 psi pressure.
There are 1/4-turn Eterna compression cartridges on this pre-rinse unit with spring checks that prevent the cross-flow of water.
T&S Brass B-0123-ADF12-B Features
- Deck-mount EasyInstall overhead spring style pre-rinse unit
- 8" centers
- 44" flexible stainless steel hose with heat resistant gray handle and hold down ring
- 1.15 GPM spray valve (T&S Brass B-0107)
- 12" swivel nozzle (T&S Brass 062X)
- 1/4-turn Eterna compression cartridges
- Inlets: 1/2" NPT female eccentric with 2" flanges
- Temperature range: 40 - 140 degrees F
- Pressure: 20 - 125 psi
- Low-lead compliant
- NSF/ANSI 61 compliant
- Certified to ASME A112.18.1/CSA B125.1
T&S Brass B-0123-ADF12-B Benefits
- Spring checks on Eterna compression cartridges prevent the cross flow of water
Overall Dimensions:
Overall Height: 46"
Hose Length: 44"
Add-On Faucet Length: 12"
