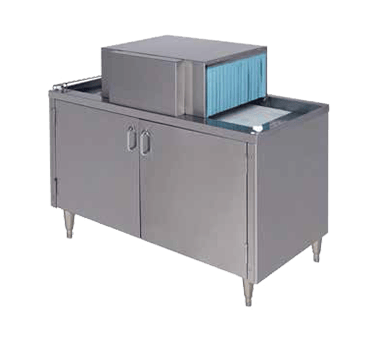

Moyer Diebel SW400L Low Temp Conveyor Glasswasher - 30 Racks Per Hour, 208-230v/1ph

Moyer Diebel Ltd.

SKU: SW400L
Sale price
$18,329.76
Regular price
$24,439
You save
$6,109.24 (25%)
Taxes and shipping calculated at checkout
Title:
Each

Frequently Bought Together

Title: Each

Stock Notification

Get notified when this product is available again

We Accept

Apple Pay
Mastercard
PayPal
Visa

Product Information

Glasswasher, pass-thru, 48"W, left-to-right operation, low temperature chemical sanitizing, approximately (2000) 2-1/2" diameter glasses/hr, 10-1/4" glass clearance, polypropylene conveyor, (3) built-in chemical pumps, fully automatic, cool fresh water rinse, cabinet base with doors, stainless steel construction, 3.0 kW tank heater, NSF, UL, CSA (includes: authorized factory start-up)

Moyer Diebel SW400L Pass Through Fully Automatic Glasswashing Machine

General Info

Specified unit will be Moyer Diebel model SW400 or SW600 passthrough conveyor type glasswasher. Features include detergent, sanitizer and rinse aid pump, upper & lower wash/rinse arms, cold water final rinse, polypropylene conveyor, two splash curtains, processes 2,000 glasses/hr.

Moyer Diebel SW400L Features

  • Highest capacity, cleans and sanitizes 2,000 glasses per hour
  • Cool water final rinse ensures steady supply of clean, cool glasses ready for immediate use, reducing labor and breakage
  • No steam generated behind the bar
  • Automatic operation glass activated shut-off switch
  • Upper and lower wash and rinse arms
  • Built-in three pump injection system uses iodine or chlorine sanitizer
  • Cabinet provides convenient storage for chemicals
  • Polypropylene belt conveyor eliminates chipping of stemware
  • Right-to-left or left-to-right operation (must specify)
  • Include 6' NEMA 6-15p cord and plug
  • One year parts and 90 day labor warranty

Moyer Diebel SW400L Specifications

  • Uncrated Dimensions (HxWxD) :38-1/2" [978] x 48" [1219] x 22" [559]
  • Crated Dimensions (HxWxD) :49" [1244] [978] x 53" [1346] x 27-1/2" [698]
  • Uncrated Ship Wt. lbs/kg :225/102
  • Crated Ship Wt. lbs/kg :255/115
  • Capacities 2-1/2" glasses/hr :2,000
  • Water Consumption :
    • Cold water : 2.8 US gpm
    • Hot water (initial fill) : 3 US gallons
  • Temperature °F/°C :
    • Inlet water (hot) : 140-160
    • Inlet water (cold) : 75
  • Heating :
    • Tank heat, electric (kW) : 3
  • Other Details :See spec. sheet

Specifications Moyer Diebel SW400L Low Temp Conveyor Glasswasher - 30 Racks Per Hour, 208-230v/1ph
