Specification
| Ship Weight |
|
| Manufacturer |
Vulcan |
| Model Number |
VCRG36-T |
| Manufacturer Part # |
VCRG36-T |
| Oversized Shipping |
No |
| Hazardous Material |
No |
| Base Material |
Stainless Steel |
| Color |
Silver |
| NSF Listed |
Yes |
| UL Listed |
No |
| Energy Star |
No |
| Burner Style |
U |
| Number of Burners |
3 |
| Control Type |
Thermostatic |
| Number of Controls |
3 |
| Exterior Dimensions (HxWxD) |
16.00" x 36.00" x 27.00" |
| Work Surface Dimensions (WxD) |
36.00" x 20.50" |
| Cooking Surface Material |
Steel |
| Power |
Natural Gas |
| Liquid Propane Convertible |
Yes |
| Grease Can Capacity |
4.5 Quarts |
| Legs |
4" |
| Griddle Size |
36" x 20-1/2" |
| Inlet Size |
3/4" |
| Cooking Height |
12-1/2" |
| BTU per Burner |
25,000 |
| Total BTU |
75,000 |
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Description

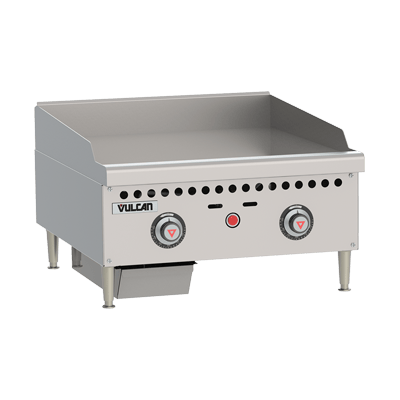

The VCRG36-M is a Countertop Griddle from Vulcan. This product ships as a natural gas griddle, but features a field conversion kit to liquid propane. The polished steel griddle plate measures at 1? thick. The front, sides, and top ledge are constructed of stainless steel. The griddle itself measures 36" x 20-1/2?. The grease can has a capacity of 4-1/2 quarts. There is a pilot safety valve included for every 2 burners, which shuts off gas if the pilot extinguishes.
This low-profile griddle features (3) U-shaped burners, which are constructed of aluminized steel. There are (3) snap-action thermostatic controls, one for each burner. The cooking height measures 12-1/2?, while the legs stand at 4?. The temperature ranges from 200? to 450?F.
Vulcan VCRG36-M Features
- Countertop Griddle
- Low Profile
- Front/Sides Material: Stainless Steel
- Color: Silver
- (3) Snap-Action Thermostatic Controls
- Millivolt Pilot Safety
- Number of Burners: 3
- Number of Drawers: 1
- 25,000 BTU per Burner
- 50,000 BTU Total
- Temperature Range: 200? - 450? F
- Standing Pilot Ignition System
- 4" Adjustable Legs
- Ships Natural Gas
- Liquid Propane Conversion Kit
- 12-1/2? Cooking Height
- 3/4? Rear Gas Connection
- Gas Pressure Regulator
- Welded Steel Chasis Frame
- Grease Can/Tray
- Griddle Size: 36" x 20-1/2?
- CSA Design Certified
- NSF Listed
Vulcan-Hart VCRG24-T Benefits
- As a piece of equipment that can sit on any countertop, this gas-powered griddle has a low profile, so its sure to take up minimal space and be easy to work on
- Since it boasts stainless steel construction, you can trust that you'll be able to make cheesestakes, eggs, and just about anything else
- Polished steel griddle plate will release foods cooked on it quickly
Overall Dimensions:
Height: 16"
Width: 36"
Depth: 27"
